      08-24-2007, 10:11 PM   #199
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Well its all done except for the remote display which I want to expirment with for a while to see where I can place it that will be visible enough for me to read and low enough to tap/mute and stay out of sight as well.

I mounted mine V1 to the right of the mirrow as I thought it tucked in there a little better than the left side. I ran the cord along the windshield, down the pillar, into the glovebox like most others. I added one improvement IMHO in adhering the control box to the removable back plate of the glovebox. It lines up with the torx screw just a few mms lower. I left enough slack so it can be removed and serviced easily.

I then ran the concealed telephone wire out the back of the glovebox ziptied it across the ductwork tucking in all the extra slack. I then ran the last foot or so wedged between the aluminum console and rubber trim. For now, I like the concealed display to the left of the ashtray. If I mount it there I plan to use a thin foam double sided tape as the velcro it comes with it too thick for a flush fit.

Anways here are some pics. I also wanted to show the fusepanel layout differences for those who were confused with the pics here. Additionally, I took a shot of how I had to bend the fuses to be able to push the fusetap in fully.

Everything worked out in the end. Thanks again Josh.
Attached Images

__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-24-2007, 10:13 PM   #200
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Here's #28 slot after I pulled it...
Attached Images

__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-24-2007, 10:15 PM   #201
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Fusetapped tapped...
Attached Images

__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-24-2007, 10:22 PM   #202
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List

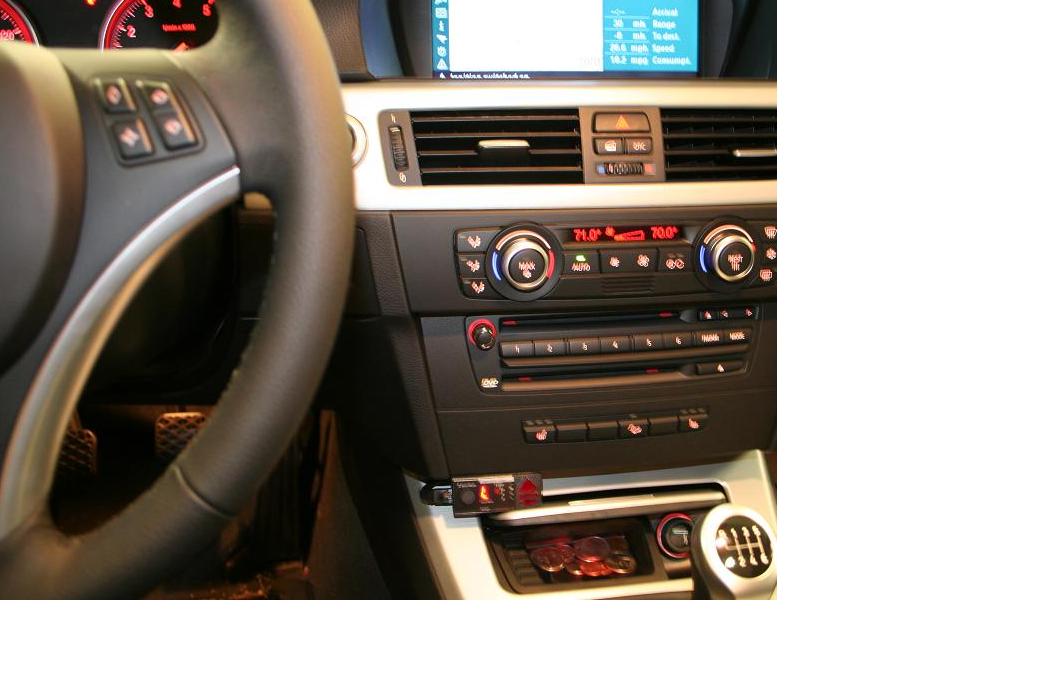

Temporay location...the ashhtray lid actually holds it in place quite snugly and is almost in the completely open position.

I thought about locating it in the ashtray, but thats even further from my line of sight and I did not want to tear apart the console yet.
Attached Images

__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-26-2007, 08:27 AM   #203
Josh49
Major General
95
Rep
6,665
Posts


Drives: E90 325xi
Join Date: Jan 2006
Location: Boston, MA

iTrader: (33)

No problem, glad I could help..

Good to see that everything is up and operational!!
__________________

E90 325XI, MYSTIC BLUE ON BLACK/ALUM, STEP, NAV, PDC, CWP, XENON, SIRIUS, ALARM, MUD GUARDS, CLEARBRA, CHROME GRILLS AND TIPS, VALENTINE 1 (HARDWIRED), HO CERAMIC 40%, 161'S, REAR FOG MOD, LUX 4.0, BLACKLINES, OEM PEDALS, MTEC FOGS, GRUPPE-M REP INTAKE. 156'S AND RUBBER MATS FOR THE WINTER.
Appreciate 0
      08-26-2007, 11:40 PM   #204
Chowbow
pew pew
80
Rep
6,737
Posts


Drives: 三三五i
Join Date: Aug 2007
Location: CA

iTrader: (5)

Garage List
Just got done with my stealth install. Pics to follow. The concealed display looks great in the vent though and the remote audio is plenty loud enough in the ashtray. Also, with the ashtray lid closed, when the detector goes off, I can just tap the ashtray lid to mute as it's just enough to hit the audio button on the remote audio. Works nicely.
__________________
CSL replicas are now CSL counterfeits. Jesus saves, like Valentine1.
Appreciate 0
      08-27-2007, 06:22 AM   #205
FrankoQ
Deny everything
FrankoQ's Avatar
United_States
134
Rep
11,293
Posts


Drives: 2006 330i
Join Date: Apr 2006
Location: Laurel, MD

iTrader: (4)

Garage List
2006 330i  [0.00]
Send a message via AIM to FrankoQ
Quote:
Originally Posted by Chowbow View Post
Just got done with my stealth install. Pics to follow. The concealed display looks great in the vent though and the remote audio is plenty loud enough in the ashtray. Also, with the ashtray lid closed, when the detector goes off, I can just tap the ashtray lid to mute as it's just enough to hit the audio button on the remote audio. Works nicely.
Pics please.
__________________

I need a drink

Appreciate 0
      08-27-2007, 07:08 AM   #206
335viaSTi
Colonel
335viaSTi's Avatar
United_States
25
Rep
2,365
Posts


Drives: LeMans Blue E90 ///M3
Join Date: Mar 2007
Location: WPAFB, OH

iTrader: (3)

Quote:
Originally Posted by FrankoQ View Post
Pics please.
^^what he said
__________________
E90 ///M3 [LeMans / Silver Novillo Extended / Carbon Leather Trim / DCT / Everything] I picked DCT because I want to be more involved in my un-involvement.
Appreciate 0
      08-27-2007, 09:30 AM   #207
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Yeh...pics.

Another mounting tip I discovered. Menard's and Im sure the other big box stores sell a very nice adhesive solution for mounting the concealed unit.

I found it over in the paint section by all the velcro and tape.

Anyways, I used these ~1"x1" black foam double sided squares. The nice part is they are removable/temporary. I thought about velcro but its too thick and is visible in the mount.
__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-27-2007, 09:40 AM   #208
HyperM3
Too many Alex's, from now on, call me Beaufort
HyperM3's Avatar
United_States
107
Rep
6,169
Posts


Drives: See Sig
Join Date: Feb 2007
Location: Lawrenceville, NJ

iTrader: (8)

Send a message via AIM to HyperM3 Send a message via Yahoo to HyperM3
Quote:
Originally Posted by Kruz View Post
Temporay location...the ashhtray lid actually holds it in place quite snugly and is almost in the completely open position.

I thought about locating it in the ashtray, but thats even further from my line of sight and I did not want to tear apart the console yet.
So is your ashtray always open? Its not that hard to put it in the ashtray(that piece pulls out to give you more room) and its not much further out of sight. Secondly, how often do you really need to see a warning when it a radar detector? You only need sound. When you hear it, you slow down, doesnt matter where its coming from. Thats how I look at it.
__________________
13 HD FatBob
14 Audi S6
Audi Brand Specialist @ Princeton Audi
Appreciate 0
      08-27-2007, 01:27 PM   #209
Chowbow
pew pew
80
Rep
6,737
Posts


Drives: 三三五i
Join Date: Aug 2007
Location: CA

iTrader: (5)

Garage List
Quick pics:











Very very very short write up:

The install was actually pretty easy. The hardest part was getting the A/C vent disassembled, and putting the kick panels back on after running the phone cord from the glove box to the 3rd brake light. They pop right off, but putting them back on is a pain.

Everything else was straight forward and just took a little tweaking... The V1 is mounted with the sunvisor clip, and with velcro on the inside of the 3rd brake light cover. I wanted the velcro there to make sure it stayed put, and prevent it from flying off in an accident. The middle seat is useless now as the V1 intrudes on headroom (I'm 5'8" and my head touches the V1 in that seat).

The remote audio controller was necessary for me, as I wanted the audio to come from the general front area of the car instead of from the V1 unit in the back. Also, I want to be able to turn off and change the volume from where I sat in the driver's seat. The unit fits just right in the ashtray. Tapping the cover of the ashtray while it is closed, mutes the V1 as the button just gets pressed when that happens, and the ashtray cover remains closed. It takes a bigger push to open the ashtray. Sound from the remote audio unit is loud and clear inside there.

The concealed display works fantastic in the AC vent. I removed the set of fins that directs airflow from left to right. I COULD have left it in there and made the concealed display fit. I took the display apart and was able to squeeze it in there with all the vents. But the horizontal and vertical vents got in the way of the display. Instead, I just removed the "vertical" set of vents (no cutting required, just pops out), and mounted the display behind the horizontal slats. There is enough clearance that you can still close the vent with the roller 0/1 thing.

I mounted the display on the "top" side of the vent because the concealed display's lights align better with the vent that way. The bogey counter is fully visible, as are the strength lights. What is blocked is the X-band LED (I have X-band turned off, and the side-to-side arrow is mostly blocked. The most important info is there though and it's perfect since it is at the same level as the other gauges. I hated having to look down by the ashtray to see the concealed display... I had it there temporarily for 2 days before I started the hardwire install.

Any questions, ask away... but really it's quite simple to do and everything is self explanatory once you start pulling panels off.
__________________
CSL replicas are now CSL counterfeits. Jesus saves, like Valentine1.
Appreciate 0
      08-27-2007, 01:34 PM   #210
FrankoQ
Deny everything
FrankoQ's Avatar
United_States
134
Rep
11,293
Posts


Drives: 2006 330i
Join Date: Apr 2006
Location: Laurel, MD

iTrader: (4)

Garage List
2006 330i  [0.00]
Send a message via AIM to FrankoQ
Wow. Nice set up.
Thanks for the pics.
__________________

I need a drink

Appreciate 0
      08-27-2007, 01:50 PM   #211
Josh49
Major General
95
Rep
6,665
Posts


Drives: E90 325xi
Join Date: Jan 2006
Location: Boston, MA

iTrader: (33)

Great placement. Not too far out of your line of sight..
__________________

E90 325XI, MYSTIC BLUE ON BLACK/ALUM, STEP, NAV, PDC, CWP, XENON, SIRIUS, ALARM, MUD GUARDS, CLEARBRA, CHROME GRILLS AND TIPS, VALENTINE 1 (HARDWIRED), HO CERAMIC 40%, 161'S, REAR FOG MOD, LUX 4.0, BLACKLINES, OEM PEDALS, MTEC FOGS, GRUPPE-M REP INTAKE. 156'S AND RUBBER MATS FOR THE WINTER.
Appreciate 0
      08-27-2007, 02:18 PM   #212
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Quote:
Originally Posted by HyperM3 View Post
So is your ashtray always open? Its not that hard to put it in the ashtray(that piece pulls out to give you more room) and its not much further out of sight. Secondly, how often do you really need to see a warning when it a radar detector? You only need sound. When you hear it, you slow down, doesnt matter where its coming from. Thats how I look at it.

No...I can close it after I used some of this temporary double sided foam tape. See my post above.

I was and still am considering the ashtray, but then I lose my coin holder. I like the audio remote idea with the cover tap to mute as I do like to see the bogey counter and silencing it is important to me as well so it needs to be in easy reach. Just sounds like some additional work. Maybe a winter project.

That vent setup does look cool though.

Is it just the picture or does the angle of the rear mount seem quite a few degrees from parallel?
__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-27-2007, 04:05 PM   #213
Chowbow
pew pew
80
Rep
6,737
Posts


Drives: 三三五i
Join Date: Aug 2007
Location: CA

iTrader: (5)

Garage List
Not just the picture... The main unit is a little off parallel. I put some felt pads to get the right angle on it but put too many on there. Just went out there at lunch to look at it and I definitely have to tweak that a bit so that it is level with the ground, or slightly tilts down toward the front so it has a better view through the front windshield.
__________________
CSL replicas are now CSL counterfeits. Jesus saves, like Valentine1.
Appreciate 0
      08-27-2007, 04:34 PM   #214
ren
Captain
14
Rep
825
Posts


Drives: E92 335
Join Date: Jan 2007
Location: U.S.

iTrader: (8)

Nice setup. You're right that looking down in the ashtray is a pain , but I think I got used to it. Most of the time I don't even look and just push the mute button unless it's a Ka signal.
Appreciate 0
      08-27-2007, 06:36 PM   #215
Chowbow
pew pew
80
Rep
6,737
Posts


Drives: 三三五i
Join Date: Aug 2007
Location: CA

iTrader: (5)

Garage List
Quote:
Originally Posted by erensf View Post
Nice setup. You're right that looking down in the ashtray is a pain , but I think I got used to it. Most of the time I don't even look and just push the mute button unless it's a Ka signal.
Check out the custom V1 programming then. I have mine setup to where I have X band totally disabled, and K band only makes noise once the signal is strong enough to 6 lights. There are quite a few options that you can program and I've found it useful in the areas where we drive.

I'm just used to the V1 concealed display in the general level of the gauges as in my previous cars I've had a similar setup, so I felt the need to do this little mod...
__________________
CSL replicas are now CSL counterfeits. Jesus saves, like Valentine1.
Appreciate 0
      08-27-2007, 06:57 PM   #216
dpeterson
Private
United_States
0
Rep
75
Posts


Drives: 07 BMW 335i Montego Blue
Join Date: Jul 2007
Location: Springboro, OH

iTrader: (0)

Quote:
Originally Posted by Kruz View Post
Well its all done except for the remote display which I want to expirment with for a while to see where I can place it that will be visible enough for me to read and low enough to tap/mute and stay out of sight as well.

I mounted mine V1 to the right of the mirrow as I thought it tucked in there a little better than the left side. I ran the cord along the windshield, down the pillar, into the glovebox like most others. I added one improvement IMHO in adhering the control box to the removable back plate of the glovebox. It lines up with the torx screw just a few mms lower. I left enough slack so it can be removed and serviced easily.

I then ran the concealed telephone wire out the back of the glovebox ziptied it across the ductwork tucking in all the extra slack. I then ran the last foot or so wedged between the aluminum console and rubber trim. For now, I like the concealed display to the left of the ashtray. If I mount it there I plan to use a thin foam double sided tape as the velcro it comes with it too thick for a flush fit.

Anways here are some pics. I also wanted to show the fusepanel layout differences for those who were confused with the pics here. Additionally, I took a shot of how I had to bend the fuses to be able to push the fusetap in fully.

Everything worked out in the end. Thanks again Josh.

I just did mine, and just turned the add a fuse thing the other direction... didnt have to bend the fuses.. fyi.

dave
Appreciate 0
      08-27-2007, 08:25 PM   #217
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Quote:
Originally Posted by dpeterson View Post
I just did mine, and just turned the add a fuse thing the other direction... didnt have to bend the fuses.. fyi.

dave
I tried both directions...you must have a diff fuse panel layout than what I posted in the pics above. I had fuses in both directions.
__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-30-2007, 05:51 PM   #218
Chowbow
pew pew
80
Rep
6,737
Posts


Drives: 三三五i
Join Date: Aug 2007
Location: CA

iTrader: (5)

Garage List
Quick update...

I don't think the V1 in that third brake light position is the best. Frontal coverage seems to suffer, but maybe I just need to tweak how the V1 sits (the front is still pointed upwards towards the roof a bit).

The mute through tapping the ashtray cover is annoying, because sometimes the ashtray cover opens if you tap it too hard. I'm going to get one of the Audi guys from another forum to fab me a mute cable. I believe he sells on eBay as agravic or something similar, he's on the Audi forums that I used to frequent and made a cable just for muting... I'll put that at the base of my shifter for mute functionality.
__________________
CSL replicas are now CSL counterfeits. Jesus saves, like Valentine1.
Appreciate 0
      08-31-2007, 12:53 AM   #219
Kruz
Major
Kruz's Avatar
12
Rep
1,066
Posts


Drives: 335xi
Join Date: Jun 2007
Location: Chicagoland

iTrader: (4)

Garage List
Is the third brake light mount just to be more discreet and keep the windshield clutter free?

I applaud the effort, I was lazy and thought it tucked in real tidy to the right of the mirror.
__________________
07/07 E90 335xi SG
Black Dakota|Alum|ZSP|2AB|ZPP|ZCW|Nav|CA|6FL|PDC|Blackli nes|3M
Summers: 235/40/18 265/35/18 Hankook Ventus V12 on VMR 701s
A/S: 225/40/18 255/35/18 Pirelli PZero Nero M+S on OEM 162s
Appreciate 0
      08-31-2007, 02:20 AM   #220
Chowbow
pew pew
80
Rep
6,737
Posts


Drives: 三三五i
Join Date: Aug 2007
Location: CA

iTrader: (5)

Garage List
Yeah it's for more discreetness. People don't notice it, even people who have V1s... Had a couple co-workers sitting in the car and 2 people got into the back seat, and neither of them noticed it. One of them has a V1 in his WRX as well. It wasn't until the remote audio beeped that he realized there was a V1 in the car and he was looking all over the windshield and dash to see where it was.
__________________
CSL replicas are now CSL counterfeits. Jesus saves, like Valentine1.
Appreciate 0
Reply

Bookmarks

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -5. The time now is 09:22 PM.




e90post
Powered by vBulletin® Version 3.7.0
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
1Addicts.com, BIMMERPOST.com, E90Post.com, F30Post.com, M3Post.com, ZPost.com, 5Post.com, 6Post.com, 7Post.com, XBimmers.com logo and trademark are properties of BIMMERPOST
