(DIY) One little piece needed to enable our USA rear fog lights

(DIY) enable our USA rear fog lights for E90 & E92

I took my light switch apart and discover that our switch has the ability for rear fogs, but there's one little piece needed/missing to activate it.

The switch is very easy to take apart.....just a few clips on the sides
(check other diy on how to take the light switch off)

Pic 1
Components of the switch

Pic 2
To have rear fogs…this is the piece we’ll need.
Another words, we’ll have to duplicate this

Pic 3

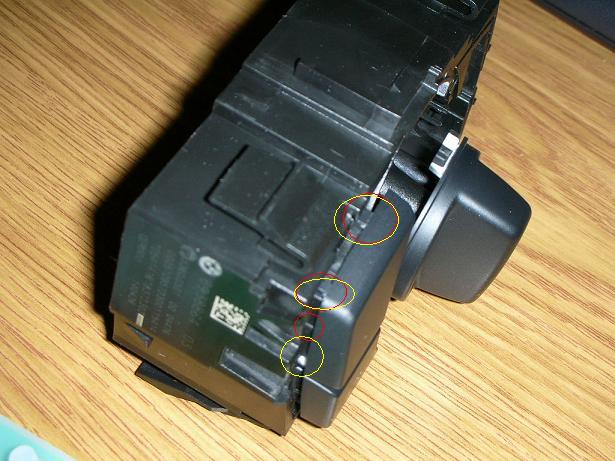

cut/clip the (yellow) circled areas will enable the rear fog button

(Edit)
Pic # 3 & 4......the button has "4" clips not 3...its placed inside so I took out the button and cut off the 4 clips on the button

Now taking out the button can be tricky....I used two small flat-head screw drivers to unclip the inside in order to release the button

Pic 5
Main Board – To activate the fogs (front & rear), the two rubber nipples must be pressed (left/right).


Now.....how do we duplicate the "white piece"
I use a plastic exercise grip.....cut it to the shape of the white piece and just glue a flat surface on top.
You can also use a plastic pen cap, legos, golf tee, or whatever works for you

Pic 6
OEM white piece - duplicate piece
The duplicate piece is longer because the white piece has a built in stop where as the duplicate don't, so it needs to be longer in order to hit the rubber.


EDIT: some new models/LCI already have the 2nd white piece inside.
Attached Images

__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)

Last edited by ska///235i; 11-06-2010 at 12:07 PM.
Appreciate 0
      03-17-2007, 02:30 PM   #2
HyperM3
Too many Alex's, from now on, call me Beaufort
United_States
141
Rep
6,185
Posts

Drives: See Sig
Join Date: Feb 2007
Location: Lawrenceville, NJ

iTrader: (8)

So can we just fabricate something to make it work? Isnt the buttons to activate the rear fogs different too?
__________________
13 HD FatBob
16 S6 Sepang/Black/Prestige/B&O/BlackOpt/DA/Sport ~ AluKreuz/Trans&Diff Inserts/USP Intake/RaceChip/15mm Spacers
Appreciate 0
      03-17-2007, 02:36 PM   #3
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
Quote:
Originally Posted by HyperM3 View Post
Isnt the buttons to activate the rear fogs different too?
just unclip (edit..."cut") the tiny little pieces holding the button (circle in yellow)
Attached Images

__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)

Last edited by ska///235i; 03-17-2007 at 05:48 PM.
Appreciate 0
      03-17-2007, 02:40 PM   #4
HyperM3
Too many Alex's, from now on, call me Beaufort
United_States
141
Rep
6,185
Posts

Drives: See Sig
Join Date: Feb 2007
Location: Lawrenceville, NJ

iTrader: (8)

Rock on.
__________________
13 HD FatBob
16 S6 Sepang/Black/Prestige/B&O/BlackOpt/DA/Sport ~ AluKreuz/Trans&Diff Inserts/USP Intake/RaceChip/15mm Spacers
Appreciate 0
      03-17-2007, 02:42 PM   #5
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
w000000tttttt.... weekend DIY. NICE FIND.
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
      03-17-2007, 02:44 PM   #6
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
actually.....for those that already bought a german switch, give the extra piece to your buddy

it's really easy to do...takes 2 minutes
__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)

Last edited by ska///235i; 03-17-2007 at 05:49 PM.
Appreciate 0
      03-17-2007, 02:58 PM   #7
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
Quote:
Originally Posted by ska View Post
actually.....for those that already bought a german switch, give the extra piece to your buddy

it's really easy to do...takes 2 mintes
wait, the german switch comes with an extra white piece?
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
      03-17-2007, 03:01 PM   #8
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
Quote:
Originally Posted by uhaulball View Post
wait, the german switch comes with an extra white piece?
ok...
the USA switch has one (white piece)...the Germany switch has two (white piece)
each piece is the extension from the button to the main board

so for those that already bought the german switch (part # 61316932796), they can give away their piece from the old USA switch
__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)
Appreciate 0
      03-17-2007, 03:02 PM   #9
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
then what extra piece are you referring to? are you saying the german switch owners can give the 2nd white piece away?

also, for me with the regular US version, if i do mod it, how can i make it so that the button presses inward, right now it doesnt go in at all.
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
      03-17-2007, 03:04 PM   #10
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
Quote:
Originally Posted by uhaulball View Post
then what extra piece are you referring to? are you saying the german switch owners can give the 2nd white piece away?

also, for me with the regular US version, if i do mod it, how can i make it so that the button presses inward, right now it doesnt go in at all.

OMG...no one is reading...lol
look at pic # 3

use a razor blade and cut those clips off

so for those that already bought the german switch (part # 61316932796), they can give away their piece from the old USA switch
__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)
Appreciate 0
      03-17-2007, 03:07 PM   #11
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
dude i read perfectly.... nowhere did u say to cut it off lol. u said to unclip it. and then you said people with the german switch can give their "extra" piece away. i know the german switch has two buttons, hence two white pieces, but then when u said extra piece, i thought they had a spare white piece totalling in 3....

u made it unclear, now i know what you meant was, give the german switch in its entirety away, since this mod is easy to do!

but how would i fabricate a white piece? im still thinking.
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
      03-17-2007, 03:08 PM   #12
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
Quote:
Originally Posted by uhaulball View Post
dude i read perfectly.... nowhere did u say to cut it off lol. u said to unclip it. and then you said people with the german switch can give their "extra" piece away. i know the german switch has two buttons, hence two white pieces, but then when u said extra piece, i thought they had a spare white piece totalling in 3....

i need my coffee
but you know what i mean now right?
__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)
Appreciate 0
      03-17-2007, 03:10 PM   #13
HyperM3
Too many Alex's, from now on, call me Beaufort
United_States
141
Rep
6,185
Posts

Drives: See Sig
Join Date: Feb 2007
Location: Lawrenceville, NJ

iTrader: (8)

Quote:
Originally Posted by ska View Post
so for those that already bought the german switch (part # 61316932796), they can give away their piece from the old USA switch
Ok, you lost me here. Wouldnt you need that piece for the second set of buttons on the resister board? If they give it away, they are left in the same place as us who have to fabricate something.
__________________
13 HD FatBob
16 S6 Sepang/Black/Prestige/B&O/BlackOpt/DA/Sport ~ AluKreuz/Trans&Diff Inserts/USP Intake/RaceChip/15mm Spacers
Appreciate 0
      03-17-2007, 03:17 PM   #14
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
Quote:
Originally Posted by HyperM3 View Post
Ok, you lost me here. Wouldnt you need that piece for the second set of buttons on the resister board? If they give it away, they are left in the same place as us who have to fabricate something.
hyper, he meant give the german switch in its entirety away, since this mod is easy to do! we just need to figure out how to fabricate the small white piece. maybe we can create a small mold out of the white piece we already have. im just a little scared if i mess up, but if i do i could just buy a german part which is only 55 bucks anyway.
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
      03-17-2007, 03:17 PM   #15
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
Quote:
Originally Posted by uhaulball View Post
hyper, he meant give the german switch in its entirety away, since this mod is easy to do! we just need to figure out how to fabricate the small white piece. maybe we can create a small mold out of the white piece we already have. im just a little scared if i mess up, but if i do i could just buy a german part which is only 55 bucks anyway.
nahhh

Quote:
Originally Posted by HyperM3 View Post
Ok, you lost me here. Wouldnt you need that piece for the second set of buttons on the resister board? If they give it away, they are left in the same place as us who have to fabricate something.

"so for those that already bought the german switch (part # 61316932796), they can give away their piece from the old USA switch"


__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)
Appreciate 0
      03-17-2007, 03:20 PM   #16
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
ooooo.........

that makes even more sense lol!
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
      03-17-2007, 03:21 PM   #17
ska///235i
***** noob
ska///235i's Avatar
United_States
494
Rep
10,280
Posts

Drives: 325xi>M235i>428GCx Mspor
Join Date: Sep 2005
Location: Boston

iTrader: (34)

Garage List
2006 325xi  [0.00]
Quote:
Originally Posted by uhaulball View Post
ooooo.........

that makes even more sense lol!
:rocks: :rocks: :rocks: :rocks: :rocks:
__________________
2006 325xi (Sold)
2014 M235I (Current)
2015 428xi Gran Coupe (STB)
Appreciate 0
      03-17-2007, 03:23 PM   #18
montreal_bimmer
Major General
montreal_bimmer's Avatar
Italy
89
Rep
5,583
Posts

Drives: E90 AW
Join Date: Feb 2006
Location: Montreal

iTrader: (6)

Garage List
2006 325i  [5.00]
good find
Appreciate 0
      03-17-2007, 03:26 PM   #19
HyperM3
Too many Alex's, from now on, call me Beaufort
United_States
141
Rep
6,185
Posts

Drives: See Sig
Join Date: Feb 2007
Location: Lawrenceville, NJ

iTrader: (8)

Quote:
Originally Posted by uhaulball View Post
hyper, he meant give the german switch in its entirety away, since this mod is easy to do! we just need to figure out how to fabricate the small white piece. maybe we can create a small mold out of the white piece we already have. im just a little scared if i mess up, but if i do i could just buy a german part which is only 55 bucks anyway.


Ok, well Ill try it. Worst case scenario is I have to buy the German part for $55.
__________________
13 HD FatBob
16 S6 Sepang/Black/Prestige/B&O/BlackOpt/DA/Sport ~ AluKreuz/Trans&Diff Inserts/USP Intake/RaceChip/15mm Spacers
Appreciate 0
      03-17-2007, 03:27 PM   #20
SKBMW
Lieutenant Colonel
SKBMW's Avatar
No_Country
135
Rep
1,858
Posts

Drives: Bicycle
Join Date: Jan 2007
Location: Vancouver

iTrader: (0)

Send a message via MSN to SKBMW
Great find man!
__________________
Appreciate 0
      03-17-2007, 03:41 PM   #21
enlightenment
Private First Class
United_States
2
Rep
140
Posts

Drives: Z4 ///M Coupe AW/IR
Join Date: Jul 2006
Location: Calabasas, CA

iTrader: (1)

Alright... if you guys are going to do this rear fog light mod (which is a great mod, good work ), don't be one of those dumbasses who always puts them on all the time when they are not needed. I always see people in audi's driving like this. I don't think many people understand when to use rear fogs or even know that they turned them on. I'm not saying people on this forum would do that, just be aware and use them appropriately (ie in heavy rain and dense fog).
Appreciate 0
      03-17-2007, 03:44 PM   #22
uhaulball
Brigadier General
80
Rep
4,164
Posts

Drives: e90 330xi
Join Date: Dec 2005
Location: Long Island, NY

iTrader: (11)

Send a message via AIM to uhaulball
i plan on using it whenever a huge SUV tailgates me. they tailgate me around here even when im going 60 in a 45.
__________________
'06 bsm e90 330xi : 18" VMR CSL : KW V3 : GruppeM Rep Intake : UUC/Corsa Catback : Hartge Lip : ACS Roof Spoiler
OEM CF Trunk Spoiler : CF Emblems. Pillars. Mirror. Grille : LUXER12 led plate : V1 Hardwired : OG.longtran e90post sticker! circa 2005
Appreciate 0
Reply

Bookmarks

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -4. The time now is 12:51 PM.




e90post
e90post
Powered by vBulletin® Version 3.7.0
Copyright ©2000 - 2016, Jelsoft Enterprises Ltd.
1Addicts.com, BIMMERPOST.com, E90Post.com, F30Post.com, M3Post.com, ZPost.com, 5Post.com, 6Post.com, 7Post.com, XBimmers.com logo and trademark are properties of BIMMERPOST
