How to replace LCD on BMW Professional radio

First remove the heater controls by prying out the left and right sides.

Name:  fig 1.JPG
Views: 29530
Size:  91.7 KB

Then remove the two screws retaining the radio.

Name:  fig 2.JPG
Views: 30485
Size:  109.6 KB

Pull the radio outwards. Disconnect the multi-plug, on the left, by releasing the plastic retaining lever upwards. Remove the connector for the aerial cable, on the right, by pressing the small tab and then carefully pulling the connector from the back of the radio.

Name:  fig 3.JPG
Views: 31871
Size:  95.8 KB

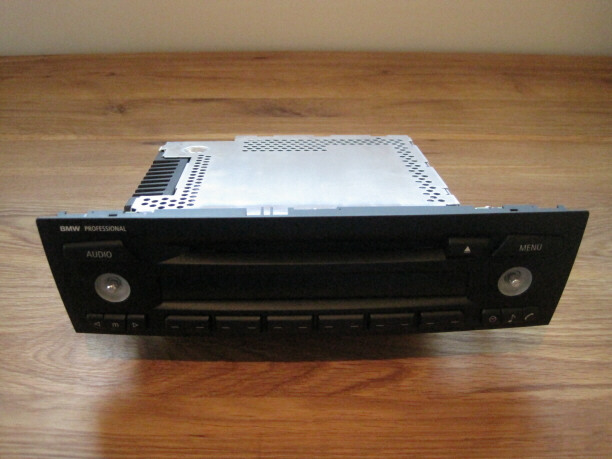

Remove the two buttons on the front panel of the radio, by pulling them firmly away from the unit.

Name:  fig 5.JPG
Views: 27719
Size:  73.4 KB

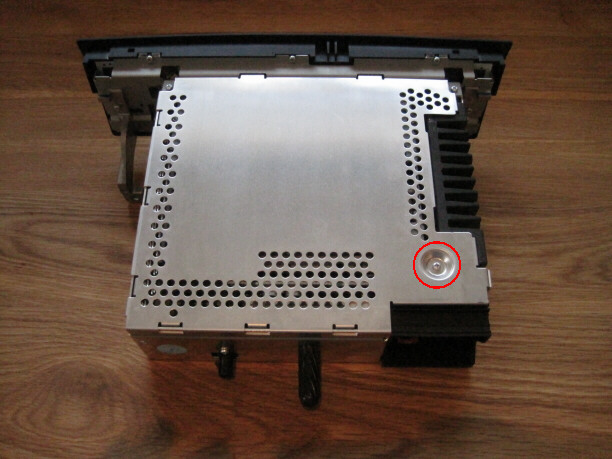

Remove the lid by unfastening the screw indicated.

Name:  fig 4.JPG
Views: 27607
Size:  85.4 KB

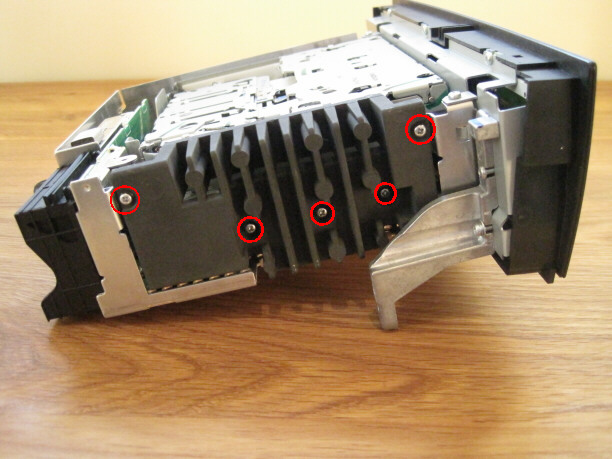

Remove the five screws on the left hand-side. Carefully pull the heat sink away.

Name:  fig 6.JPG
Views: 27510
Size:  90.3 KB

There will be white thermal paste on the heat sink and the three chips. This should be removed using alcohol or citrus based thermal paste remover. It is best to remove most of the paste with a cloth and remove any remaining paste with a fine brush, dipped in the solvent. The radio should now look something like this.

Name:  fig 7.JPG
Views: 27381
Size:  105.3 KB

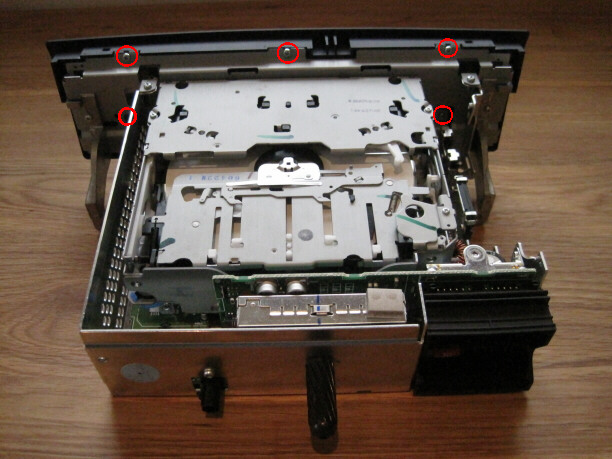

Now remove the five screws securing the front panel.

Name:  fig 8.JPG
Views: 27535
Size:  95.5 KB

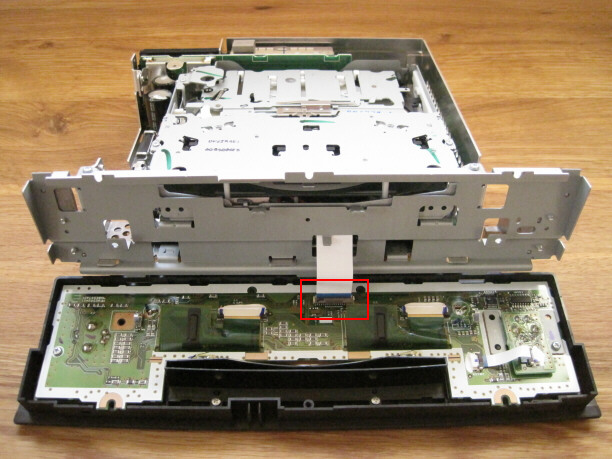

Tilt the top of the front panel away from the body of the radio. There is a plastic hinged flap on the connector indicated. Open this flap then disconnect the ribbon cable by carefully pulling the cable out of the connector.

Name:  fig 9.JPG
Views: 27660
Size:  102.1 KB

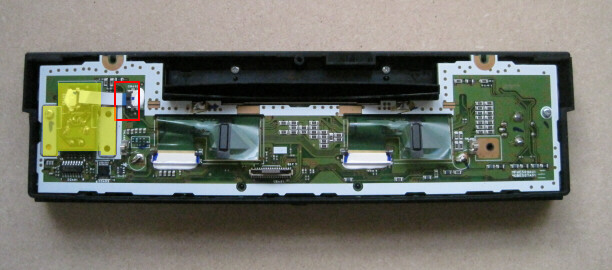

Carefully disconnect the ribbon cable to the right-hand control knob indicated. Remove the small circuit board (highlighted yellow) from the main circuit board.

Name:  fig 10.JPG
Views: 27251
Size:  59.1 KB

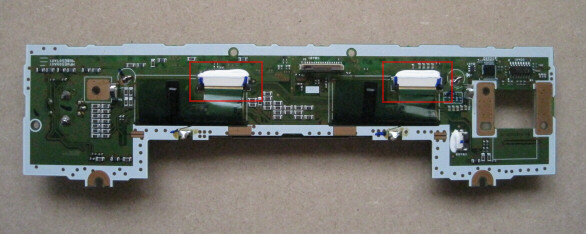

The LCD is connected to the main circuit board by two ribbon cables. These are very delicate and must be removed carefully, to ensure that they are not damaged.

Name:  fig 11.JPG
Views: 27062
Size:  49.2 KB

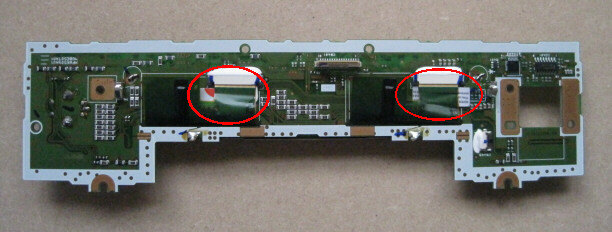

Cut two small rectangular pieces of plastic from an old credit card, or similar, and place underneath the ribbon cables as they enter the connectors.

Name:  fig 12.JPG
Views: 27117
Size:  53.9 KB

Using a clean finger, press gently downwards on the ribbon cable against the plastic underneath and pull the ribbon cable out of the connector.

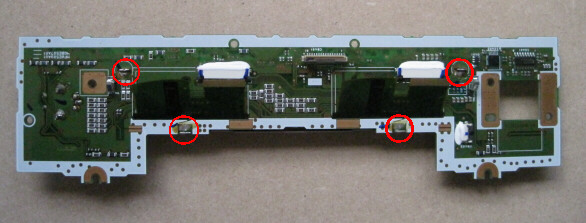

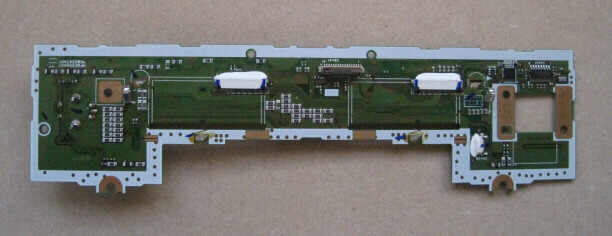

The LCD is housed in a metal frame which is fixed to the main circuit board by tabs, which are soldered at the points indicated. Unsolder these tabs, using a soldering iron and solder removal tool. Then straighten the tabs, using pliers, and remove the LCD assembly from the circuit board.

Name:  fig 13.JPG
Views: 26938
Size:  49.9 KB

Name:  fig 14.JPG
Views: 27083
Size:  49.4 KB

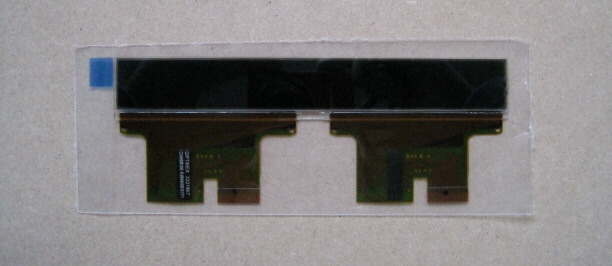

Remove the old LCD from the metal frame. Obtain a replacement LCD, type OPTREX 3231867, for your CD73 head unit. These are available on the internet, e.g. pixelfix.

Name:  fig 15.JPG
Views: 27281
Size:  40.7 KB

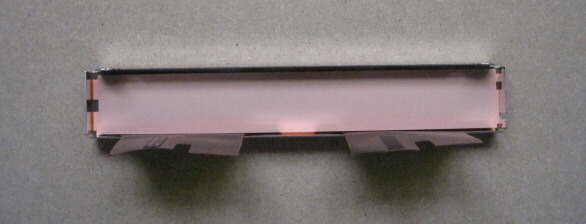

Carefully peel back the plastic film which is applied to both sides of the LCD. Then install the LCD in the metal frame and replace the plastic backing pieces.

Name:  fig 16.JPG
Views: 26908
Size:  31.9 KB

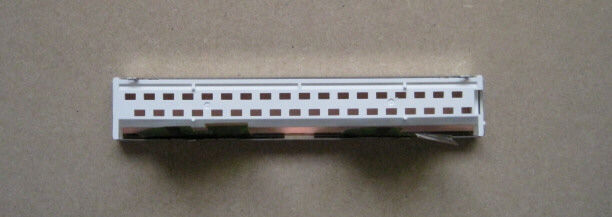

Name:  fig 17.JPG
Views: 26939
Size:  36.5 KB

Reassemble the radio in the reverse order. Take extreme care when reconnecting the ribbon cables as they are particularly delicate.

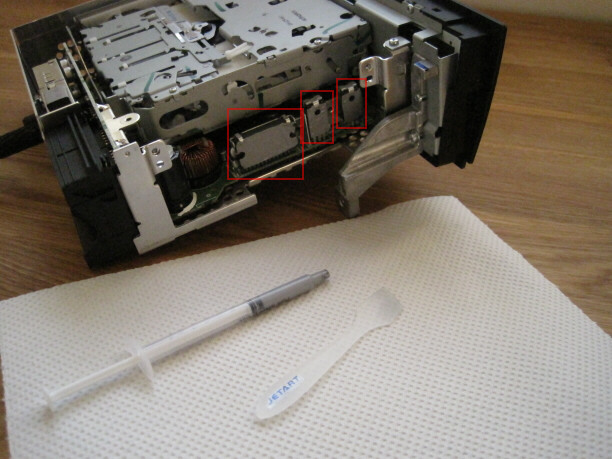

Remember to apply a thin layer of thermal paste to the chips before reattaching the heat-sink.

Name:  fig 18.JPG
Views: 27066
Size:  90.9 KB

Finally, refit the stereo and check that it operates correctly. There is a test mode on the CD73 unit. Turn on the radio, then press and hold the ‘m’ button for approximately ten seconds. The test mode is navigated using ‘+’ and ‘-’, until it displays a number of test patterns. Exit the test mode by turning the radio off.

Name:  fig 19.JPG
Views: 30314
Size:  89.8 KB

Last edited by BeakerBoy; 02-04-2012 at 11:51 AM. Reason: Improve clarity.
Appreciate 1
      03-21-2012, 11:51 PM   #2
Pokerpot
Private
2


Drives: 2011 335i
Join Date: Mar 2012
Location: Austin, TX


Posts: 59
iTrader: (1)

can you please double check the optrex panel number... I can't find it anywhere. What does it say on the ribbon?
Appreciate 0
      03-22-2012, 01:48 PM   #3
BeakerBoy
New Member
United Kingdom
3


Drives: BMW 330i
Join Date: Jan 2012
Location: UK


Posts: 15
iTrader: (0)

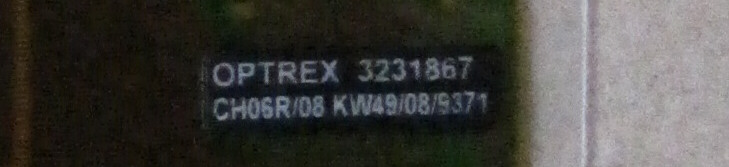

Here is zoomed image showing ID number:

Name:  lcd.JPG
Views: 26054
Size:  31.1 KB

I bought my replacement LCD from PixelFix:

http://www.diyparadise.net/bmw_cd73_repair.html

I emailed a guy called Balazs, in Hungary, at pixelfixltd@yahoo.com.

The new LCD was about £80. This was half the cost I was quoted for repair by 'clusterrepairs' in the UK and also saved cost/trouble of sending the radio to be repaired with risk of damage in transit.

It took 3 days for the replacement LCD to arrive in the UK. It was well packaged in cardboard and a padded envelope.

The new LCD appears identical to the original BMW/Alpine display. It has the same information on the manufacturer's label which is attached to it.

I have emailed OPTREX to enquire if there are any other suppliers that we can get these displays from. I will post any reply that I receive.

Last edited by BeakerBoy; 03-22-2012 at 02:15 PM.
Appreciate 0
      03-22-2012, 02:43 PM   #4
ctuna
Brigadier General
44


Drives: 325xi 06 wagon MT
Join Date: Jan 2010
Location: Santa Cruz, Ca


Posts: 4,288
iTrader: (0)

Thanks for this

I know Digikey is a distributor for this supplier but the part no doesn't come up on there website. (at least the first one didn't)
My guess is it would be hard to get these directly from the manufacturer.
Also thank for the DIY.
Appreciate 0
      03-22-2012, 03:38 PM   #5
JimVR4
Second Lieutenant
United_States
9


JimVR4's Avatar

Drives: 09 328i M-Sport 6MT
Join Date: Nov 2011
Location: San Jose, CA


Posts: 289
iTrader: (0)

Great job! Subscribed for just in case....
__________________
2009 E90 328i ///M-Sport / Blue Water Metallic / Oyster/Black Dakota / PP / 6MT / 194M / Comfort / iPod+USB w/ProClip charging dash mount / $494 /
1995 3000GT Spyder VR4
Appreciate 0
      03-22-2012, 05:35 PM   #6
ctuna
Brigadier General
44


Drives: 325xi 06 wagon MT
Join Date: Jan 2010
Location: Santa Cruz, Ca


Posts: 4,288
iTrader: (0)

Chated with digikey

They say no part number like that they have or can find but it may be a special made for BMW
so it looks like optrex direct or the sources already listed.
Appreciate 0
      04-02-2012, 06:05 AM   #7
angeloto
Registered
0


Drives: 120d
Join Date: Jun 2010
Location: Spain


Posts: 1
iTrader: (0)

Great job!
Appreciate 0
      08-10-2012, 06:41 PM   #8
mando3
Registered
0


Drives: 2006 325i
Join Date: Jul 2012
Location: SA


Posts: 3
iTrader: (1)

I have a 2006 325i and as hard as I tried I couldn’t remove the A/C panel, I even have a prying tool, has anybody done this in this model? Or anybody else experience problems removing the unit?

It is sad that I got stuck in the first step.
Appreciate 0
      08-22-2012, 05:39 PM   #9
dstorzak
Registered
0


Drives: 330i
Join Date: Aug 2012
Location: chattanooga


Posts: 1
iTrader: (0)

Quote:
Originally Posted by ctuna View Post
I know Digikey is a distributor for this supplier but the part no doesn't come up on there website. (at least the first one didn't)
My guess is it would be hard to get these directly from the manufacturer.
Also thank for the DIY.
anybody you can just buy the ribbon here in the states?
Appreciate 0
      11-08-2012, 12:11 PM   #10
allotherareused
Enlisted Member
2


Drives: 320d, e90
Join Date: Jul 2012
Location: Santiago


Posts: 43
iTrader: (0)

display to buy

Hi,

I've got display from this guy and this was faulty unit. After claim on paypal I've got money back but that is not what I want, I want to repair this, so question is :

Anyone have found another display source for reasonable price, I don't want to send my radio to another continent, to wait 1 month and to pay 300 US$ for repair + 200 US$ or more for shipment.

Thank you in advance,
Dejan
Appreciate 0
      11-08-2012, 12:37 PM   #11
ctuna
Brigadier General
44


Drives: 325xi 06 wagon MT
Join Date: Jan 2010
Location: Santa Cruz, Ca


Posts: 4,288
iTrader: (0)

What about this.

http://www.e90post.com/forums/showthread.php?t=687463

http://www.ebay.com/itm/OEM-BMW-prof...b1e498&vxp=mtr

Last edited by ctuna; 11-08-2012 at 12:43 PM.
Appreciate 0
      11-08-2012, 12:39 PM   #12
mando3
Registered
0


Drives: 2006 325i
Join Date: Jul 2012
Location: SA


Posts: 3
iTrader: (1)

Quote:
Originally Posted by allotherareused View Post
Hi,

I've got display from this guy and this was faulty unit. After claim on paypal I've got money back but that is not what I want, I want to repair this, so question is :

Anyone have found another display source for reasonable price, I don't want to send my radio to another continent, to wait 1 month and to pay 300 US$ for repair + 200 US$ or more for shipment.

Thank you in advance,
Dejan
I got a display that I never used, got it from ebay as well, I can ship within the US(still have it on the box it was originally shipped)
Appreciate 0
      11-28-2012, 01:32 AM   #13
allotherareused
Enlisted Member
2


Drives: 320d, e90
Join Date: Jul 2012
Location: Santiago


Posts: 43
iTrader: (0)

sorry, wasn't visiting forum few weeks and in time found display on ebay.

guy which were selling that for 375 (with installation, no other option available) now is selling display for 150 US$.
Appreciate 0
      11-28-2012, 01:43 AM   #14
allotherareused
Enlisted Member
2


Drives: 320d, e90
Join Date: Jul 2012
Location: Santiago


Posts: 43
iTrader: (0)

Quote:
Originally Posted by mando3 View Post
I have a 2006 325i and as hard as I tried I couldn’t remove the A/C panel, I even have a prying tool, has anybody done this in this model? Or anybody else experience problems removing the unit?

It is sad that I got stuck in the first step.
in case someone in future have same problem :

aircondition control unit is fixed on two side spots visible on image up and also down. I don't have special tool for that, just use regular screw driver, put it on like 2/5 from bottom and force this, no big deal, that plastic is not rigid and won't be damaged. I will be changing display next week, if someone want can put some shots (have this removed already by replacing damaged display, installing parrot, installing blinder ...)
Appreciate 0
      02-28-2013, 04:36 PM   #15
PIXLFIX
New Member
United_States
0


Drives: E70
Join Date: Feb 2013
Location: IL


Posts: 9
iTrader: (0)

Send a message via Skype™ to PIXLFIX
I do have some of those Alpine OEM LCD screens for CD73 in case somebody needs them.
Appreciate 0
      03-03-2013, 09:10 PM   #16
Blackhawk36
Lieutenant
United_States
7


Blackhawk36's Avatar

Drives: 2007 335i 6MT No iDrive
Join Date: May 2009
Location: MD


Posts: 522
iTrader: (0)

Quote:
Originally Posted by PIXLFIX View Post
I do have some of those Alpine OEM LCD screens for CD73 in case somebody needs them.
I need one. How do I get it?
Appreciate 0
      03-03-2013, 11:48 PM   #17
PIXLFIX
New Member
United_States
0


Drives: E70
Join Date: Feb 2013
Location: IL


Posts: 9
iTrader: (0)

Send a message via Skype™ to PIXLFIX
Because I'm newbee on this forum I can not write PMs I believe.
Please contact me through Skype (skype icon below my details) or call 773-998-2269.
Appreciate 0
      03-06-2013, 10:19 AM   #18
hugus311
Titanium silver + Sport + Premium
United_States
14


hugus311's Avatar

Drives: 2006 330i (E90)
Join Date: Nov 2009
Location: west covina 626


Posts: 631
iTrader: (6)

price of screens?
Appreciate 0
      03-06-2013, 10:20 AM   #19
hugus311
Titanium silver + Sport + Premium
United_States
14


hugus311's Avatar

Drives: 2006 330i (E90)
Join Date: Nov 2009
Location: west covina 626


Posts: 631
iTrader: (6)

Quote:
Originally Posted by PIXLFIX View Post
Because I'm newbee on this forum I can not write PMs I believe.
Please contact me through Skype (skype icon below my details) or call 773-998-2269.
price of screens?
Appreciate 0
      03-06-2013, 09:43 PM   #20
PIXLFIX
New Member
United_States
0


Drives: E70
Join Date: Feb 2013
Location: IL


Posts: 9
iTrader: (0)

Send a message via Skype™ to PIXLFIX
Quote:
Originally Posted by hugus311 View Post
price of screens?
answered to PM.
Appreciate 0
      03-07-2013, 12:02 AM   #21
woodpecka
Captain
Canada
36


woodpecka's Avatar

Drives: E91
Join Date: May 2010
Location: Montreal


Posts: 999
iTrader: (2)

Pls send me the price.
Appreciate 0
      03-07-2013, 11:24 AM   #22
PIXLFIX
New Member
United_States
0


Drives: E70
Join Date: Feb 2013
Location: IL


Posts: 9
iTrader: (0)

Send a message via Skype™ to PIXLFIX
Quote:
Originally Posted by woodpecka View Post
Pls send me the price.
Done!
Just for your reference how the item looks like:
