Curb Rash Repair - Matte Black Forgestar F14s
Published by Ben Richards
06-21-2012
Curb Rash Repair - Matte Black Forgestar F14s

I performed this DIY several weeks ago but haven't had a chance to post until now.

Got some curb rash. Did some research, bought some supplies, made the repairs, and I would give myself a grade of 90%. See for yourself...

Step 1 (to be avoided if possible): Get curb rash.

Step 2: Apply that painter's tape between the tire and the rim. Get it all the way down in there. It will come off later.

Name:  1.jpg
Views: 4790
Size:  90.0 KB

Step 3: Collect your supplies. I got all this stuff at Advance Auto Parts. Don't remember the cost exactly but it was like $35 or something. Not too bad.

- Dupli-Color Grey Filler Primer
- Bondo Glazing and Spot Putty
- Paint Thinner
- Dupli-Color Perfect Match Flat Black
- Assorted sand paper

Name:  2.jpg
Views: 4656
Size:  103.1 KB

Step 4: Use your paint thinner to clean the damaged areas vigorously. Get the crud out of there. Clean, clean, clean.

Step 5: Use your coarse grit sand paper to "feather" the damaged areas. You can use a piece of wood or something and wrap the sandpaper around it. Be careful as you're sanding - don't sand your fender or an unaffected area of your rim. You may or may not be able to see where I did just that . Don't ask me how.

Name:  3.jpg
Views: 4224
Size:  89.5 KB

Steps 6 and 7: Apply the putty to try to fill in the gouges in your beautiful rim. While it dries, cover your whole car so the spray paint doesn't waft over and land on your hood or something.

Name:  4.jpg
Views: 4193
Size:  107.9 KB

Step 8: When the putty is dry, you will attempt to sand it down flush to the surface of the rim. I think I used the medium grit sand paper for this - use your judgement.

Name:  5.jpg
Views: 4163
Size:  112.7 KB

Step 9: Get ready to paint. You will apply several coats (maybe 4 or 5) of the Filler Primer. Your first coat will look something like this:

Name:  6.jpg
Views: 4124
Size:  103.3 KB

Make sure to let the paint dry in between coats. When you are finished it will look something like this:

Name:  7.jpg
Views: 4082
Size:  88.0 KB

Step 10: When the paint is dry, you will again try to sand it down flush to the surface of your rim. The putty and Filler Primer have "filled in" the gouges in the rim. This is where my project came off track a bit - you can see exposed putty which means I sanded all the Filler Primer off, and you can also see some bare metal. WTF. It may be that the paint needed more time to dry between coats. I followed the directions on the can, so maybe some extra drying time is called for.

Name:  8.jpg
Views: 4151
Size:  97.3 KB

Step 11: Now you will be ready to paint some more. I agonized at the auto parts store over which paint to get to match the matte black rim. Don't know whether that was necessary, but in the end the Flat Black really did match the rim pretty well. Follow the same procedure as for the Filler Primer. Your first coat will look something like this:

Name:  9.jpg
Views: 4123
Size:  101.0 KB

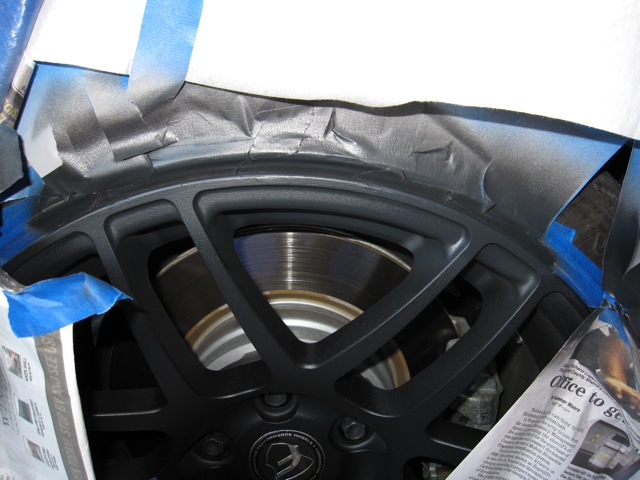

When you are finished applying a few coats, your rim will look something like this :

Name:  10.jpg
Views: 4139
Size:  85.3 KB

This last pic is from about the same angle/position as the first, so hopefully you can get a good idea of the end result.

Name:  11.jpg
Views: 4035
Size:  87.9 KB

This was almost two months ago, and the repair is holding up well. You literally have to get down on your hands and knees and look for the repaired area to see it. I am pretty particular about my stuff, especially this car, and I am happy with the work I did. If you have comments, or had another experience repairing curb rash, let me know! I hope this is helpful for you guys.

- BR
Tutorial Tools
  #1
By dman1239 on 06-21-2012, 09:05 PM
Good write up! Same thing happened to me like 2 weeks ago. Mine wasnt too bad. I was able to grind smooth with dremel and sanding stone. Only way you can tell is the way it feels other then that no one will notice.
Reply With Quote
  #2
By kjang on 06-22-2012, 04:04 AM
Member reviews
Difficulty [ 1 = Difficult ]
20%20%20%
1
Cost [ 1 = Expensive ]
20%20%20%
1
DIY Clarity [ 1 = Not clear ]
20%20%20%
1
Average 20%
Nice work! I am going to attempt the same on my oe wheels.

After you finish painting, in order to get the most oe finish, you will need to sand and hit it with compound.
Reply With Quote
  #3
By Javy on 06-28-2012, 12:17 PM
Member reviews
Difficulty [ 1 = Difficult ]
20%20%20%
1
Cost [ 1 = Expensive ]
20%20%20%
1
DIY Clarity [ 1 = Not clear ]
20%20%20%
1
Average 20%
Attachment 710694

Great job !! I think it would have came out better if you would of properly tapped off the rim to only paint the actual curb damage.
Reply With Quote
  #4
By MontegoChris on 06-28-2012, 02:16 PM
Next time, go to your local automotive paint supplies store, get some sem high build surface primer and some good quality body filler. Avoid duplicolor products and "bondo." Crap products that will give you shotty results.
Reply With Quote
  #5
By Ben Richards on 07-08-2012, 09:46 AM
Member reviews
Difficulty [ 1 = Difficult ]
80%80%80%
4
Cost [ 1 = Expensive ]
100%100%100%
5
DIY Clarity [ 1 = Not clear ]
100%100%100%
5
Average 93%
SEM products - will definitely try them next time. More important, I think, will be a good quality filler. You can see the Bondo crap came off when I tried to sand it. Well, lesson learned.
Reply With Quote
  #6
By scanboy on 07-12-2012, 10:50 PM
Member reviews
Difficulty [ 1 = Difficult ]
20%20%20%
1
Cost [ 1 = Expensive ]
20%20%20%
1
DIY Clarity [ 1 = Not clear ]
20%20%20%
1
Average 20%
Nice job, wish I could find matching paint to my gunmetal rim.
